  • Peanut Grinder
  • Peanut Grinder
  • Peanut Grinder
  • Peanut Grinder
  • Peanut Butter Grinder

    Model:GMS-130

    Granularity :2 - 50um

    Capacity :50-150 kg/h

    Power :11kw

    Rotation Speed:2930 rpm

    Dimension:1220×660×1080mm

  • We are here to help:Easy ways to get the answers you need.

    Get Price

Product Categories

Peanut Cleaning Machine

>

Peanut Roasting Machine

>

Peanut Blanching Machine

>

Peanut Chopping Machine

>

Peanut Grinding Machine

>

Peanut Coating Machine

>

Peanut Frying Machine

>

Peanut Sorting Machine

>

Peanut Packing Machine

>

Peanut Conveyors

>

 Description

How to make peanut butter? Thousands of people have thousands of answers, today we introduce a wet grinder, it is a precise colloid grinding machine which can be used for grinding all oily nuts to make out creamy nut butter/paste. Multiple Peanut Grinding Machines can be assembled flexibly in peanut butter plant to increase the nut butter productivity, all related peanut butter machine can be found in goldenmachineries.com

What’s the function of the peanut grinder?

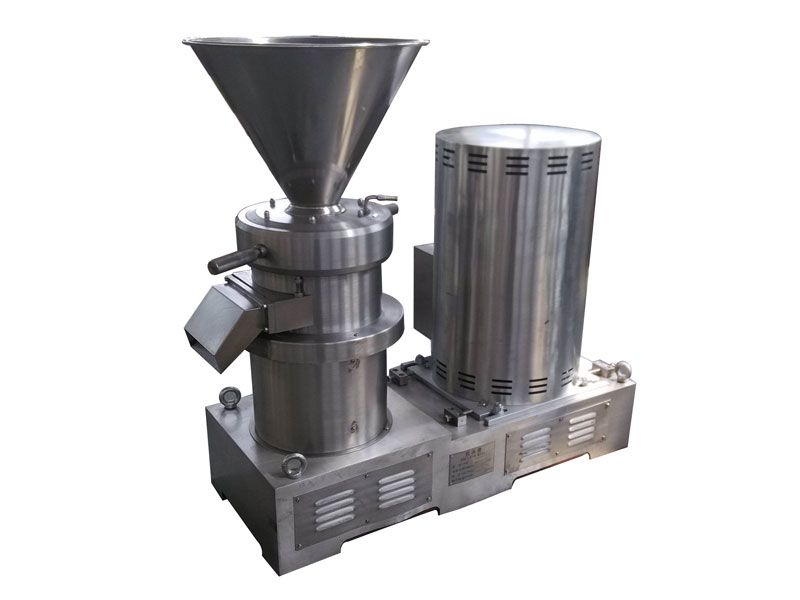

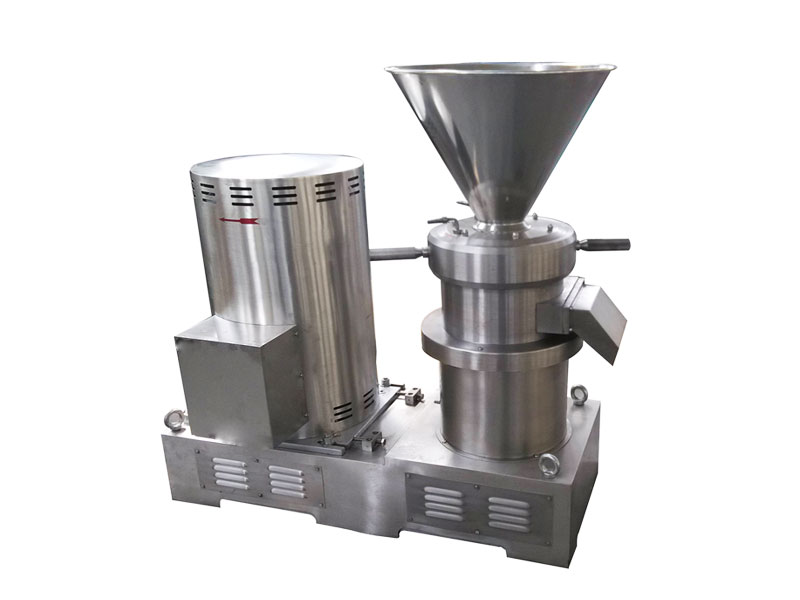

GMS series Peanut Butter Grinder is designed for grinding peanut, sesame, cocoa, almond, and fresh fruits& vegetables to get smooth peanut butter products, peanut butter maker combines multifunction on superfine grinding, emulsification, homogenization, and mixing. Nut butter grinder has an advanced design style; its structure occupies the first place in China. The main grinding data had reached an advanced level of similar products in China.

Peanut Grinding Machine has several functions in one machine, it integrates several kinds of functions of the following machinery, including homogenizer, ball grinder, three-roller grinder, and pulping engine, its efficiency is several times than that of them, widely applied for various industries of different types of raw material grinding.



After being grinded, the size of most nut butter processed will be about 3100 microns and the homogenize degree is more than 90%. It is a kind of ideal nut mill grinder in processing ultrafine corpuscles.

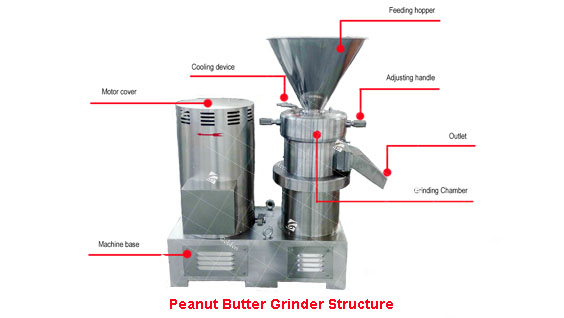

Structure of Peanut Butter Grinder

Application

Widely Application of Peanut Grinder in Food Industry

Nuts Butter: Peanut Butter, Almond Butter, Hazelnut Butter, Macadamia Nut Butter, Pecan Butter, Pistachio Butter, Walnut Butter, Pumpkin Seed Butter, Sesame Seed Paste/ Tahini, Sunflower Seed Butter,

Fruit Jam: Strawberry Jam, Mango Jam, Apple Jam, Blueberry Jam, Pineapple Jam, Kiwi Jam, Orange Jam, Cherry Jam, Mulberry Jam, Hawthorn Jam, Orange Peel Jam

Vegetable & Fruit Juice: soybean milk, Corn soup, celery juice, carrot juice, high fabric fruit juice

Bone Meal: Fresh Livestock And Poultry Bones, Fish Bones, Shrimp Shells, Crab Shells, Pork Skin, Beef Medium Skin

Spice: Ginger, Garlic, Wasabi, Mustard, Chili (fresh)

Peanut Butter Grinder/Tahini Sesame Butter Grinder




 Tomato Paste/Chili Paste Grinder Mill

Working Principle of Peanut Butter Making Machine

By means of the relative movement of the different geometric-shaped stator and rotor in high revolving speed, roasted peanut enters the colloid mill due to the gravity, ambient pressure, and centrifugal force and comes under the action of strong shearing, rubbing, impacting, high-frequency vibration and whirling forces during the variable annular grinding gap between rotor and stator. Then the peanut will be effectively dispersed, pulverized, emulsified, homogenized, and uniformed, thereby the peanut butter product with ideal size and quality will be fulfilled.

The Nut Mill Grinder’s grinding room has a 3-step grinding area, 1st is the coarse grinding area, 2nd is the fine grinding area, 3rd is the superfine grinding area, through adjusting the distance between the rotor and stator of the peanut butter grinder, it can reach to ideal grinding result. (the recycle-grinding process is available)

Constructional Characteristics of Peanut Grinder Machine

l  GMS series nut butter grinders keep up all the merits of traditional colloid mills such as well-designed construction, simple operation, low noise, easy servicing, small in size, etc. Moreover, it has also the advantages of wide adaption, easy variation in speed, mounted differently type motor, nut butter mill can satisfy special material’s grinding

l  GMS series nut butter grinder mill is a multi-patented machine: It has the characteristics of compact design, practical new type, beautiful appearance, good sealing, stable performance, convenient operation, simple decoration, durability, wide application range, high production efficiency, etc. It is the most ideal grinding process for handling fine nut butter equipment.

l  Except for the motor and some parts of the colloid mill, all the parts in contact with the material are made of high-strength stainless steel. In particular, the key moving and static grinding discs are strengthened, so they have good corrosion resistance and wear resistance. , So that the processed materials are pollution-free, sanitary, and pure.

l  Processing status: multi-stage online emulsifying and dispersing grinding machine

l  Critical parts, i.e. rotor and stator of nut grinder, are made of high-grade stainless steel and processed precisely by advanced technology, hence have good hardness, high yield strength, and deformability, which make the wearing parts more wear resistance and longer life.

l  Material contacting parts are made of food-grade stainless steel.

l  According to the different raw material type, the material type of rotor and stator can be changed to fit it.

l  Matched with a water cooling system, to guarantee the natural taste of products. Cooling water can be recycled after filtering.

l  The nominal revolving speed and its variable range may be ordered by the customer according to different uses of this machine.

l  The main body seat and the grinding gap adjusting ring are equipped with a limit position and a locking device to ensure the stability of the machining gap during working.

l  The customer can choose to use a common motor or an explosion-proof motor to peanut butter grinder for sale.

l  The whole machine is assembled or disassembled easily.

l Reasonable structure, stable performance, simple operation, and less maintenance.

Why is your peanut butter grinder more expensive than others?

In our daily work, the most constant question we were asked is why your colloid mill machine is more expensive than others? Or even some people turn to us seeking technical support due to the previous supplier can’t solve their grinder machine’s fault. Based on those points that everyone cares about most, we show our peanut butter mill and others, in order to prevent you from being misled when choosing peanut butter machines.

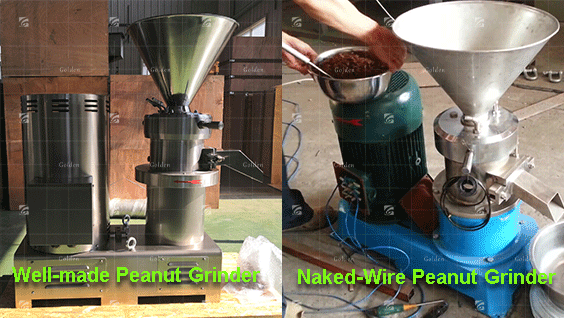

The left side is a qualified stainless steel butter mill to be shipped, with beautiful appearance, good sealing, and compact structure.
The right side is a running grinding machine for peanut butter, you can see the motor, the wire is naked, operator’s security can’t be guaranteed.

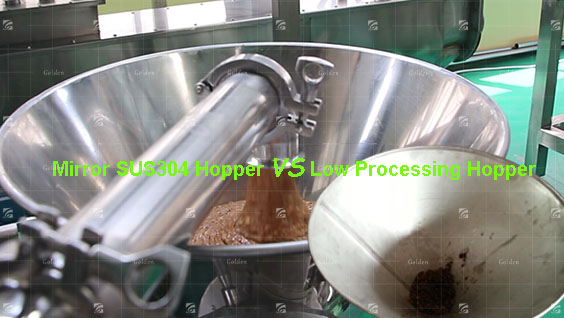

Our Nut Grinder: all parts material we adopted is complying to country standard, peanut grinders hopper is mirror stainless steel 304, the processing is smooth, no nut/paste/powder residual, Compliance with food hygiene standards.

The other Nut Mill: The hopper is coarse, poor material and low processing technology

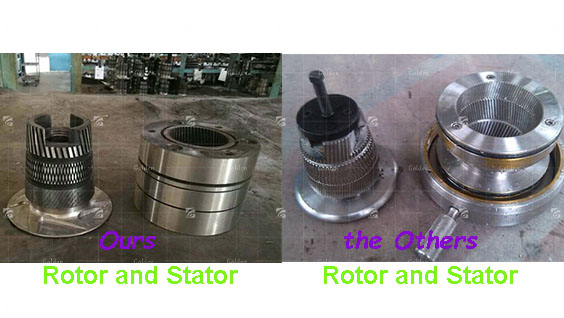

This is our key parts of nut butter grinder, rotor, and stator, from outlook, you can’t feel what’s difference between others nut grinding machine, actually, it is made by two types stainless steel, go through special processing, hence it obtains both hardness and toughness, such character enhance our nut colloid mill have excellent performance and strong durability.
And this is poor quality rotor and stator, once the nut grinder starts, you will find the nut butter isn’t so good, because the peanut grinder’s “heart” can’t provide super grinding pressure, also, you need to contact with the seller to buy new rotor and stator parts in a short time.

So you should get to know our efforts lie in those places you can't see, but we do it best always. We kindly remind customers not to make the wrong choice because of the slight price difference, otherwise, it will bring numerous & unsolvable troubles to the future peanut butter production.

Peanut Butter Grinder Inspection Before Delivery

1. Each colloid mill machine must be inspected by the inspection department before leaving our factory.

2. Each colloid grinder mill must undergo a 30min no-load test at the rated speed, and the nut grinding machine should meet the following requirements.

2.1. The peanut butter mill runs normally and smoothly, no abnormal sound is allowed, and the operating device is flexible and reliable.

2.2. The connecting parts and the fasteners can’t have a loose phenomenon.

2.3. For mass-produced peanut grinder, at least two sets of grinder machines shall be randomly inspected each year, and the test shall be conducted in accordance with the regulations of JB/T9820.3, and the results shall meet the regulations.

2.4. If it is a carbon steel type peanut grinding machine, the quality of the paint coating should be inspected according to the regulations of JB/T5673.

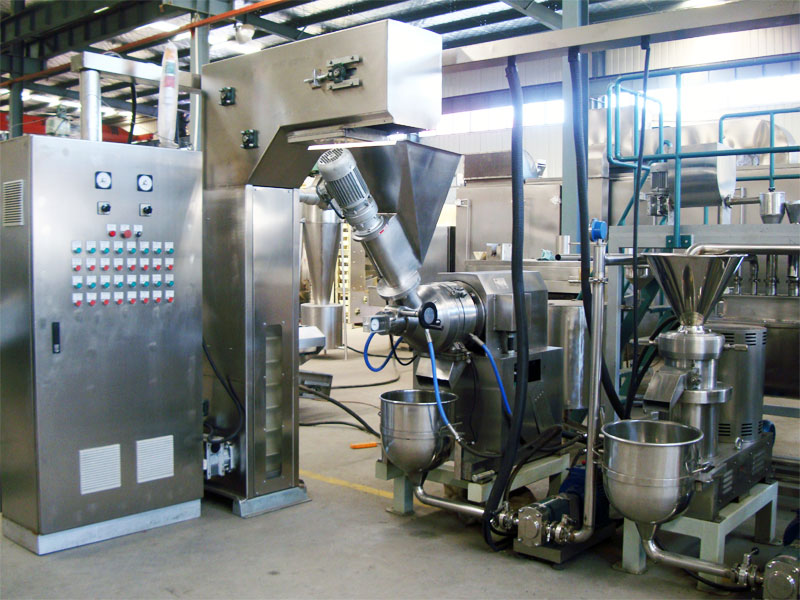

Golden machinery has many years of experience in nuts industrial processing, e.g. peanuts, almonds, cashews, pistachios, hazelnuts, sunflower, pumpkin and sesame seeds, etc. We provide complete solutions for individual process stages and control systems, including high efficient mechanic equipment and modern PLC control system- all from the one single supplier- Golden machinery, food processors have flexible options on the production line on request.

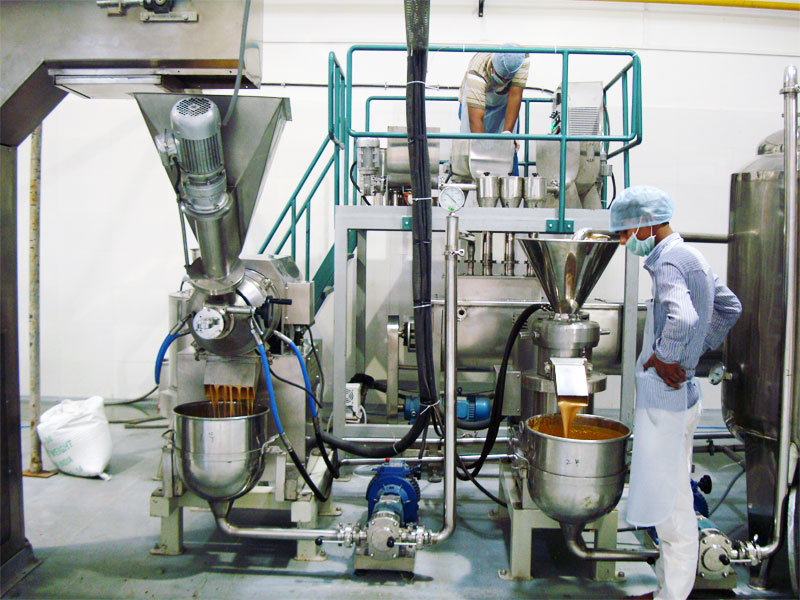

Golden machinery has proper process solutions for all processing steps, from the raw material into the finished peanut/nut butter, all highly efficient and in compliance with international food safety standards. These are end products of this line, organic creamy peanut butter, crunchy peanut butter, and whole blanched peanut(sub-products). We are always here waiting for your visit and inquiry.

Technical Parameter of Peanut Grinding Machine

Model Granularity
( um )
Capacity
( kg/h )
Power
( kw )
Rotation Speed( rpm ) Dimension
( mm )
Weight
( kg )
GMS-130 2 - 50 350-500 11 2930 1220× 660× 1080 400
GMS-180 2 - 50 750-1000 22 2930 1220× 660× 1080 450
GMS-240 2 - 50 1000-1500 45 2930 1300× 500× 1400 1000
GMS-300 2 - 50 2000-4000 55 2930 1440× 640× 1500 1600
