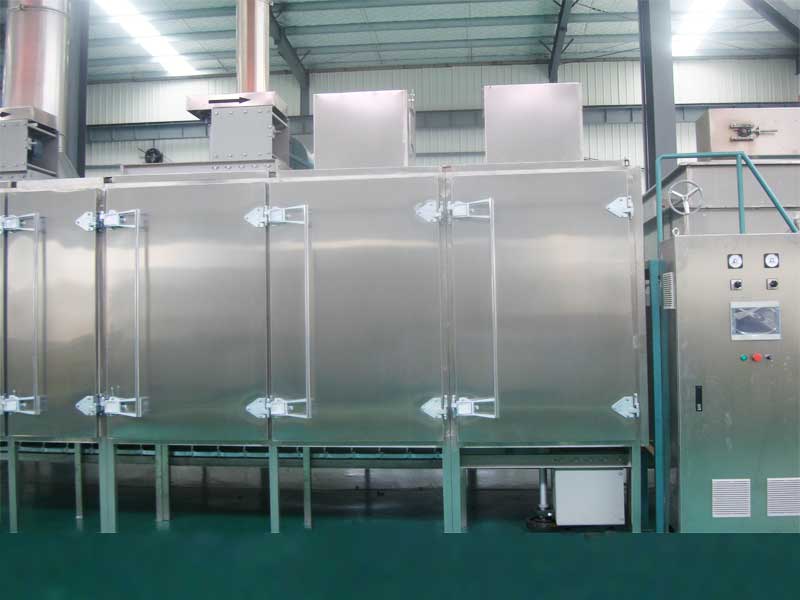

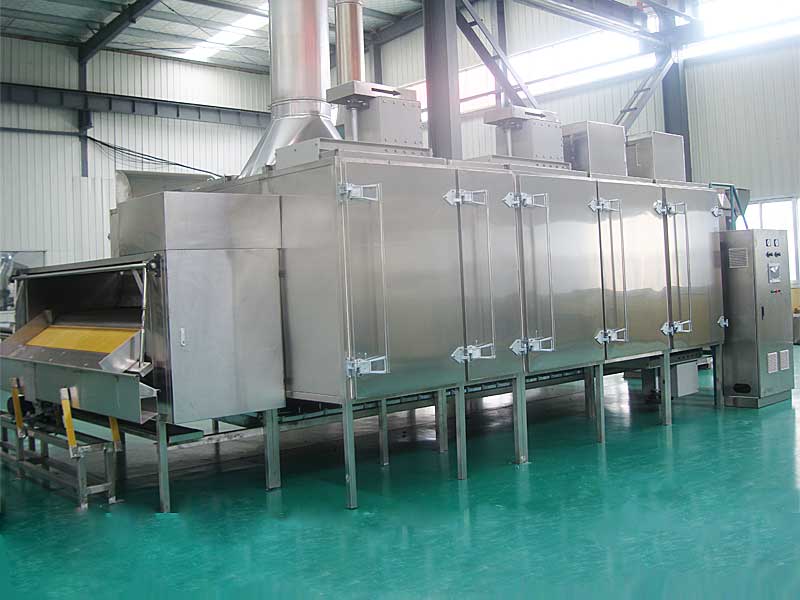

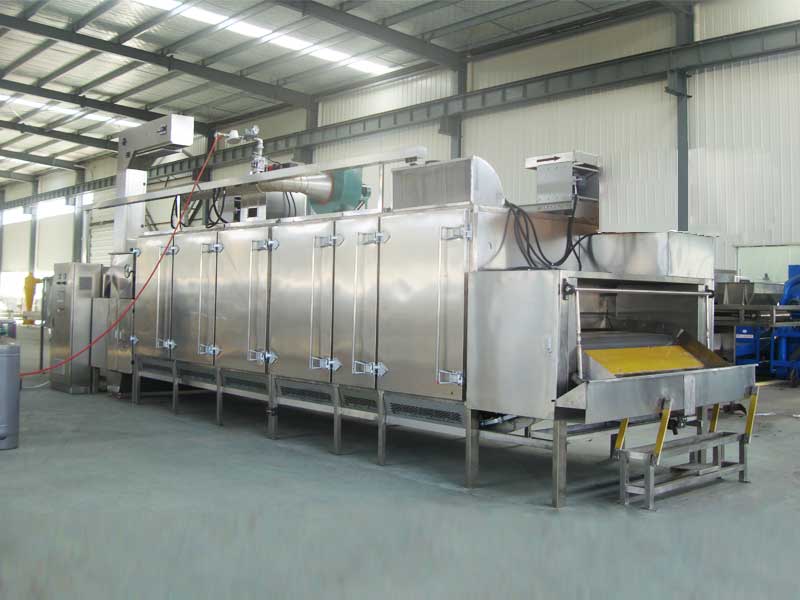

Model name:Multifunctional Peanut Roaster
Driven method:Chain
Noise level:≤75
Capacity:300/500/1000/1500/2000kg/h
Voltage:380±10V/50HZ
Customized Service:Availiable
We are here to help:Easy ways to get the answers you need.
Roasting is a typical process that uses hot air to heat peanuts evenly, roasting enhances peanut indicating different roasting result, thus can satisfy various production, e.g. whole peanut blanching, split peanut blanching, peanut chopping, peanut coating, peanut butter grinding, peanut candies, and peanuts frying production.
Multifunctional Roaster use 3 variable factors to control roaster and realize the optimized result, 1.roasting temperature is from 95-180°C (200 °F to 360 °F), 2.roasting belt speed is from 25-40hz, 3. Thickness of material is from 4-10mm. It is a continuous and fully automatic roasting process from feed peanuts to roasted peanut comes out.

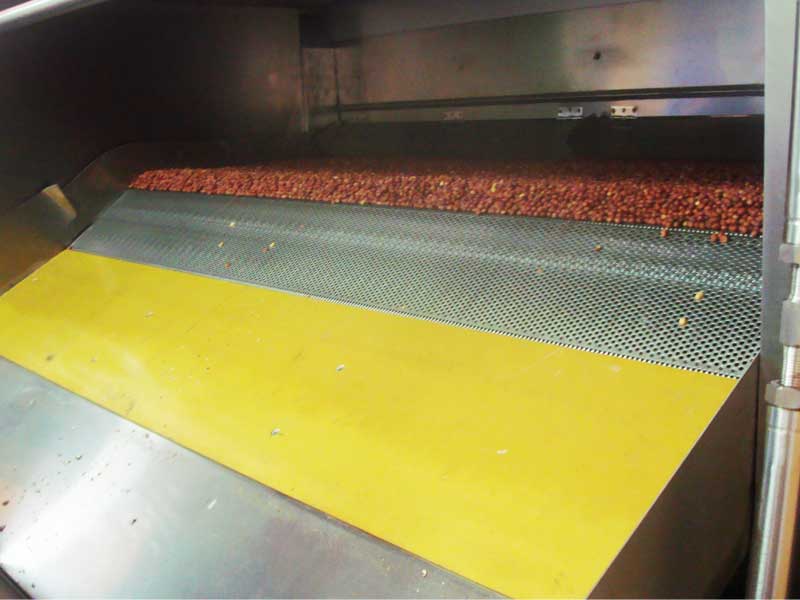

Commonly we divide roaster into high temperature roasting area, transition area and cooling area. During roasting is undergoing, peanuts stay on the perforated stainless steel conveyor belt, hot air comes from top gas burners, is blown by air blower to the top of conveyor belt, at the same time, we equip with blade type wheel to distribute hot air evenly to everywhere of conveyor belt, at the same time, another hot air blower on the bottom of roasting belt is blowing hot air from bottom side, it occurs hot air recycle inside, the hot air flow can ensure each peanut is heated evenly & entirely. After roasting finishes, peanut goes into cooling area via transition area, high pressure cold air from outside can bring the heat of peanuts away and cool down the surface temperature to room temperature.
Roaster Structure Features
I. Heat Zone (Model25 and Model50 have 1 heating zone only)
Progressive two-stage operation gas burner, hot air recycle fan, hot air distribution wheel/plate, and continuous roaster belt constitues a highly effective system, such system optimizes the gas resource, transorms into heat engergy, evenly & stably pass through nut material, takes humidity away, thus realizes slight drying or dark roasting purpose.
II.Transferring Zone
Transfer roasted nut material to cooling zone
III.Cooling Zone
Cold air enters roaster from wire mesh on top of roaster, then high pressure cooling air fan suck the heat energy from bottom channel, then drain it out of roaster.Commonly roasted nut material can be cooled at room temperature when it comes out of vibration discharging slot.
IV.Feeding Way
We have different feeding way to satisfy different processing purpose,
1.Z bucket elevator + big hopper (Z bucket elevator can feed below ground or upon ground)
2.Swing distribution conveyor belt ( suitable for moist or sticky material)
Customer need talk to us about your processing type/demand, then we give suggestion.
V.Roaster Clean
We use brusher to clean the roasting belt on-line, depends on roasting belt type, brusher can be fix on 1-side or 2-sides.
VI.Control System
We have PLC and traditional button control pannel, it contains driven parts, gas burner flame on & off, air recycle fan, temperature show & adjust automatically, roasting belt speed adjust, gas off alarm, malfunction alarm, can each step by this pannel.
Technical Specifications
|
Item |
Model 30 |
Model 50 |
Model 100 |
Model 150 |
Model 200 |
|
|
Capacity (kg/hr) |
Light roast |
300 |
500 |
1000 |
1500 |
2000 |
|
Dark roast |
400 |
750 |
1200 |
1800 |
2500 |
|
|
Power(kw) |
11.5 |
14.6 |
18.3 |
28.9 |
33.5 |
|
|
Roasting temperature |
90°C to 180°C |
|||||
|
Heating Method |
LNG/LPG Gas, Electricity, Oil-Fired |
|||||
|
Conveying Speed |
200mm/Min(variable) |
|||||
|
Noise Level |
≤75(Db) |
|||||
|
Gas Supply condition |
Gas Burning Pressure: 5Kpa Gas Pipeline Pressure: 20~50KPa |
|||||
|
Installation Dimension (m) |
8.2╳1.05╳2.4 |
10.3╳2.4╳2.9 |
10.8╳4.15╳3.8 |
14.8╳3.8╳3.82 |
17╳5.04╳3.85 |
|
|
Weight (kgs) |
3050 |
5600 |
9800 |
11000 |
12500 |
|
