  • Peanut Shelling Sieving Production Line
  • Peanut Shelling Sieving Production Line
  • Peanut Shelling Sieving Production Line
  • Peanut Shelling Sieving Production Line
  • Peanut Shelling Sieving Production Line

    Long shape peanut kernel:24/28,28/32,34/38,38/42,42/46,45/55

    Round shape peanut kernel:25/35,35/40,40/50,50/60,60/70,70/80,80/90,90/100

    Capacity:1-8t/h

    Calibrated specification:3-6 grades

    Application:Peanut shelling, peanut sieving, peanut sorting, peanut pretreatment

    Delivery :30-45 days

  • We are here to help:Easy ways to get the answers you need.

    Get Price

  •  Peanut Shelling Sieving Production Line

    Peanut shelling sieving line begins with in-shell peanuts, pass shelling/sieving/sorting/packing, finishes at Calibrated peanut kernels with sack packing.

  • Peanut Sheller

    Peanut Destoner

    Peanut Sieving-Machine

    Peanut Sorting-Belt

  • Introduction of Peanut Shelling Sieving Production Line

    Peanut shelling sieving line begins with in-shell peanuts, pass shelling/sieving/sorting/packing, finishes at calibrated peanut kernels with sack packing. This line realizes automatic industrial production of peanut pretreatment, saves labors, has obvious advantage comparing with traditional processing. Finished product can reach to export level.

    It covers bellowing steps:

    Peanut Shelling: It begins with in-shell peanuts, the foreign material (such as dirt, peanut vines, sticks, stones, peanut hulls etc.) can be removed by gravity peanut destoner. Next, peanuts with shell will be feed into twin-rollers' chamber for shelling, the gap between rollers should be adjusted as per the peanut size, too narrow will crack the peanuts, but too wide will cause unshelled peanuts increasing. At the same time, there is a rotating beater crushes the peanuts against the bottom, in order to push the shells and kernels out of shelling chamber. Shells and kernels will be separated on the function of both vibrating screens and air blower. Finally shelled peanuts are obtained and fall to next sieving section.

    Peanut Sieving: It is a principal processing, when peanut kernels are shelled, the first section is to grade and sort into different grades according to size difference, generally we divide the peanut kernel into 24-28、28-32、34-38、35-40、40-50、50-60、60-70(per ounce).

    Peanut Sorting: This section can be designed into two types, one is manual sorting, another adopts optoelectronics technology-sorting by color sorter. Broken, split, unshelled, minor defects, damaged kernels, foreign material will be sorted out.

    Peanut Packing: due to different market demand, packing machine can be designed with different packing range/types. The packing machines combine the function of measuring, filling and sealing together.

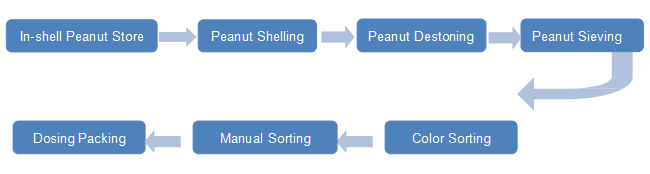

    Flow Chart of Peanut Shelling Sieving Production Line

  • Our Strength
    Based on the rule of Customer-orientated, we provide a comprehensive range of service
    Initial consultation by call, email or on-line messenger
    Project design, make the budget and feasibility analysis
    On scene research and practical discussion
    Advanced professional manufacturing, strict testing system
    Trial operate the line till customer’s satisfaction
    Timely delivery and ship organization
    Guide installation, debugging and trial running
    Monitor operating, train workers how to use and daily maintenance
    1 year warranty period
    Ongoing technical supporting and upgrading our equipment
    Availability spare parts service and fast dispatching
  • Machine Configuration


    Model Name Quantity
    Hopper 1
    Inclined Conveyor 1
    Peanut Sheller 1
    Peanut De Stoner 1
    Vertical Conveyor 1
    Peanut Sieving Machine 1
    Distributing Pipes 1
    Sorting Conveyor 1
    Peanut Collecting Conveyor 1
    Vibrating Separator 1
    Dust Collection System 1
    Packing System 1
    Electrical Control System 1
